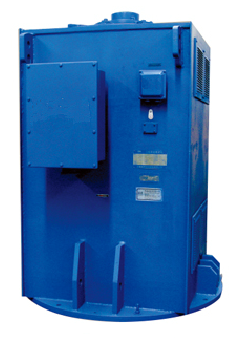

YL,YLKK series (6KV):220KW~2800KW(10KV):315KW~1800KW
| Series | YL YLKK | Voltages |
6kV, 10kV or others |
| Frame size | 355 - 630 | Frame | Cast Iron Steel |
| Power output | 185 - 2240kW | IP class | IP23, IP44, IP54, IP55 |
| Pole | 2, 4, 6, 8, 10, 12 | Temperature class | 155 (F) according to 130 (B) or 180 (H) according to 155 (F) |
| Certificates | CE | Insulation class | F, H |
|
|
|
|
General Description:
YL, YLKK series medium size high voltage, three phase asynchronous motors mounting dimensions and tolerance are coincident with GB755 <Rotating electric motor found mental technical requirement>.
Features:
1.The construction of these series is a world wide current tank shape.
2.The motors grime is made of steel plate and welded into a form, thus the rigidly is good and with a light weight.
3.The stator with outer-press-assembly structure is adopted.
4. The motor's rotor copper conductors and end rings adopt mid frequency welding when its rotor adopt copper-cage rotor, the rotor copper conductors are featured by high reliability via dealing with tightening craft in trough.
Use Condition:
1. Sutibale Places: Indoor or outdoor,no dangerous gas environment
2. Ambient temperature: -15~+40℃
3. Altitude: Below 1000m
4. Protection Class: IP23, IP44, IP54, IP55
5. Insulation Class: F, H
6. Mounting: IMV1
Vertical medium voltage motors are primarily used in the following:
1. Oil, Gas and Petrochemical Industry
2.Water, Wastewater Treatment
3.Energy and Power Generation
4.Metallurgy and Mining
YL,YLKK series (6KV):220KW~2800KW(10KV):315KW~1800KW
