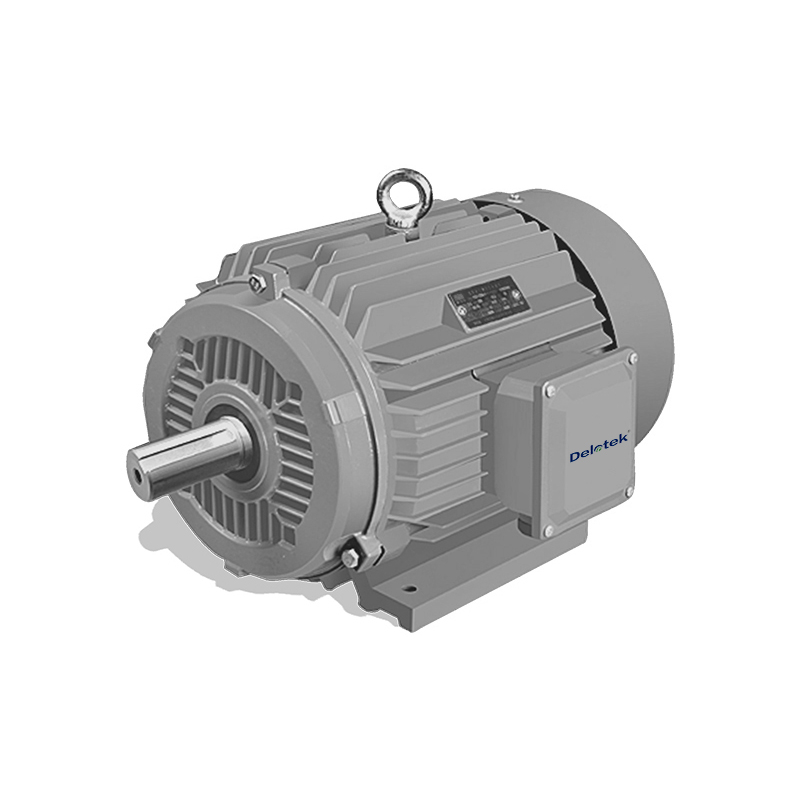

The highest efficiency of IE3 IE4 premium efficiency motor can reach 96%.
| Series | YE3 YE4 | Voltages |
380V 400V 440V |
| Frame size | 80 - 355 | Frame | Cast Iron |
| Power output | 0.75 - 375kW | IP class | IP55, IP56 |
| Mounting | B3, V1, B35, B5 | Temperature class | 155 (F) according to 130 (B) or 180 (H) according to 155 (F) |
| Efficiency | IE3, IE4 | Cooling method | IC411 |
| Pole | 2, 4, 6, 8, 10 | Certificates | CE |
Features:
1. The efficiency value fully achieves the energy GB18613-2020 standard or IEC 60034-30-1:2014 IE4.
2. Protection Degree: IP55 (IP56, IP65 as request)
3.Winding designs can support several kinds of voltage and frequency (50 or 60Hz).
4. Enclosure: TEFC
5.PTC, PT100 and other thermal elements can be chosen to protect winding and bearings.
6.Heater can be chosen to prevent moisture.
7.B3 Foot Mount, B14, B5 Flange Mount, B35 Foot Flange Mount.
8.Terminal box to have provisions for rotating in 90-degree increments for ease of conduit connection.
9.VPI process applied for best electrical performance.
10. IEC132 frame and larger suitable for Y/Delta starting.
11.High lock rotor torque.
12.Bidirectional fan.
14.Junction box equipped with glands.
Applications:
Designed to meet international standards as replacement motors for overseas applications and machinery such as pumps, conveyors, fans, crushers, compressors, mixers and more.
Ambient temperature: -20C~+40C (If it exceeds this temperature range, please consult)
Altitude: not exceeding 1000m (If it exceeds this range, please consult)
Connection: Star-connection for 3kw or less whereas delta-connection for 4kw or more.
Duty: S1 (Continuous)
2Pole Frequency:(3)5 ~60, 70, 100Hz4,6,8,10Pole Frequency: (3)5 ~100Hz
