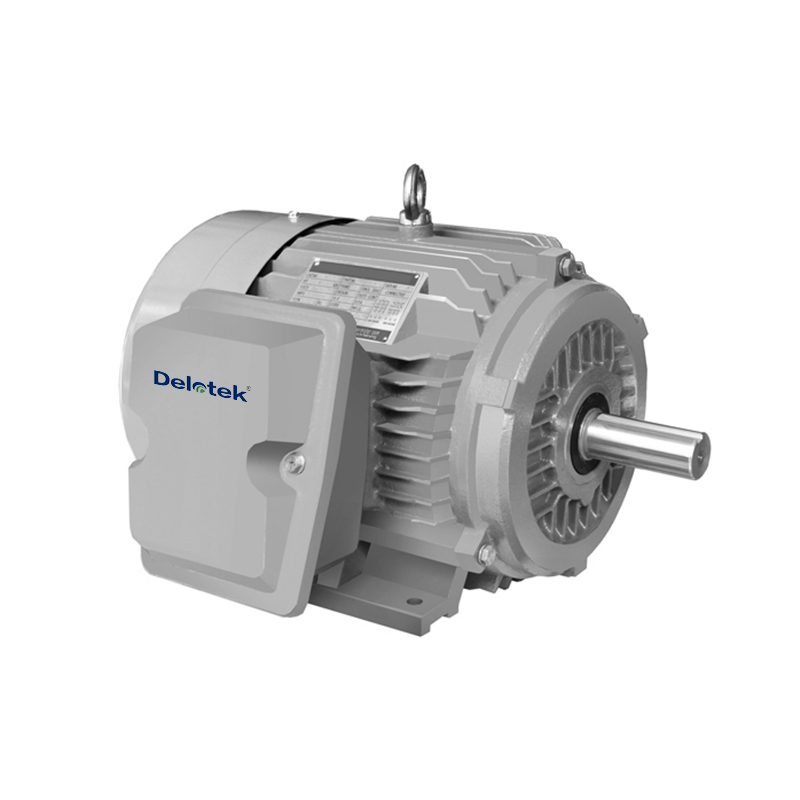

All Purpose Premium Efficient 1~250HP NEMA Motors
| Series | NEP | Voltages |
208~230/460V 575V |
| Frame size | 140T - 449T | Frame | Cast Iron |
| Power output | 1 - 250HP | IP class | IP55, IP56 |
| Mounting | TC, TD | Temperature class | 155 (F) according to 130 (B) or 180 (H) according to 155 (F) |
| Efficiency | NEMA PREMIUM | Cooling method | IC411 |
| Poles | 2, 4, 6, 8 | Certificates | CSA |
Features:
1. 3 phase motors rated 60Hz, 208~230/460V or 60Hz, 575V. SF1.15 service factor in max 40C ambient.
2. A Hi-Potential test,surge test,and no-load run test is to be performed on all motors prior to shipping.
3. All motor ratings per NEMA MG1 Section 10.
4. All tests and performance per NEMA Section 12.
5. All performance and efficiency testing per IEEE 112 Method B.
6. All covered motors must meet the US Department of Energy efficiency levels as required by the Energy Independence and Security Act of 2007 and listed in NEMA GM1 Table 1211 and Table 1212.
7.All motor dimensions and tolerances per NEMA MG1,Section 4.
8.C Face Foot Mounted motors are to have a locked drive end bearing limilting axial shaft movement to bearing internal clearance only.
9.Terminal box useable internal volume is to be in accordance with US National Electric Code Table 43012(b).
Applications:
Designed to meet international standards as replacement motors for overseas applications and machinery such as pumps, conveyors, fans, crushers, compressors, mixers and more.
Ambient temperature: -20C~+40C (If it exceeds this temperature range, please consult)
Altitude: not exceeding 1000m (If it exceeds this range, please consult)
Duty: S1 (Continuous)
2Pole Frequency:(3)5 ~60, 70, 100Hz4,6,8,10Pole Frequency: (3)5 ~100Hz
