Home > Products > Electric Motors > AC Low Voltage Motors
  • YE3XVF Inverter Duty Motor YE3XVF Inverter Duty Motor

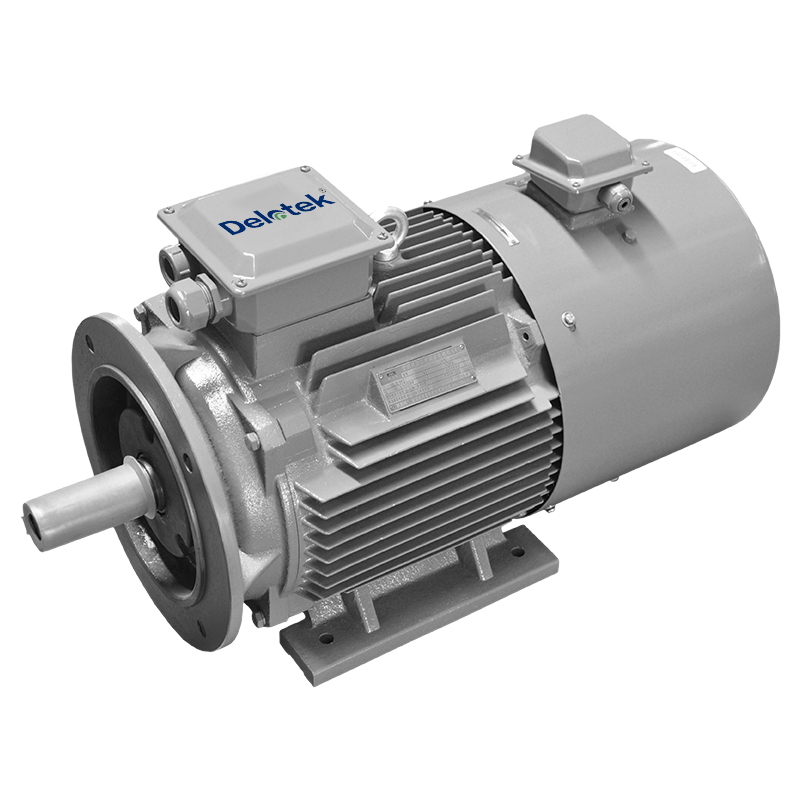

YE3XVF Inverter Duty Motor

YE3XVF Inverter Duty Motor

2Pole Frequency:(3)5 ~60, 70, 100Hz4,6,8,10Pole Frequency: (3)5 ~100Hz

Series YE3VF  YE4VF  YE5VF Voltages

380V 400V 415V

Frame size 80 - 355 Frame  Cast Iron
Power output 0.18 - 375kW IP class IP55, IP56
Mounting  B3, V1, B35, B5 Temperature class 155 (F) according to 130 (B) or 180 (H) according to 155 (F)
Efficiency  IE3, IE4, IE5 Cooling method IC416
Poles 2, 4, 6, 8, 10 Certificates CE


Download
Inquiry

Categories

  • Electric Motors
  • AC Low Voltage Motors
  • AC High Voltage Motors
  • Vertical Hollow Shaft Motors
  • DC Motors
  • Synchronous Motors
  • Gearboxes
  • Helical Gearbox
  • Turbine Reducer
  • Planetary Gearbox
  • Pumps
  • Dynamic Pumps
  • Positive Displacement Pumps
  • Specialty Pumps
  • Cabinet
  • Fire control cabinet
  • Communication cables
  • nong
  • OVERVIEW
  • SERVICE

Features:


1. Stepless speed regulation in a wide range.

2. Good performance, engergy saving.

3. 2Pole Frequency:(3)5 ~60, 70, 100Hz ,    4,6,8,10Pole Frequency: (3)5 ~100Hz

4. Enclosure:  TEFC   IC416

5. PTC, PT100 and other thermal elements can be chosen to protect winding and bearings.

6. Heater can be chosen to prevent moisture.

7. B3 Foot Mount, B14, B5 Flange Mount, B35 Foot Flange Mount.

8. High-grade insulation material and special technology can withstand high frequency pulse impact.

9. VPI process applied for best electrical performance.

10.Junction box equipped with glands.

11.Separate fan for forced-ventilation.

Applications:


Various operation systems by which speed-regulation is needed, such as metallurgy, chemistry, textile, pumps, machine tool, etc.
