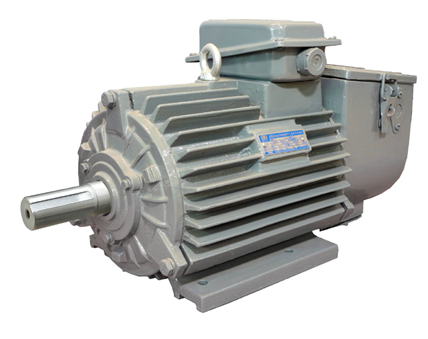

YZR crane motor are used in all metallurgy and lifting machines or the similar equipments.
| Series | YZR YZ | Voltages |
380V 400V 440V |
| Frame size | 112 - 400 | Frame | Cast Iron |
| Power output | 1.5 - 200kW | IP class | H/IP54 F/IP44 |
| Mounting | B3, V1, B35, B5 | Temperature class | 155 (F) according to 130 (B) or 180 (H) according to 155 (F) |
| Duty | S3 | Cooling method | IC411 |
| Pole | 6, 8, 10 | Certificates | CE |
Applications:
All metallurgy and lifting machines or the similar equipments.
It is suitable for driving the short time on duty or continuous on duty equipment that frequent starting, braking and significant vibration and impacting is existed. Basic Duty Type is S3 at 40% Load Duration.
Features:
1.Processes the ability of overload and mechanic strength.
2.IP44 protection and F insulation motors used on general places (40C).
3.IP54 protection and H insulation motors used on metallurgy places (60C).
4.YZR series motor is of winding rotor, YZ series is squirrel-cage rotor.
Three phase, Rigid Base, Basic Duty Type is S3 at 40% Load Duration.
General environment (40℃)
Metallurgical environment (60℃)
2Pole Frequency:(3)5 ~60, 70, 100Hz4,6,8,10Pole Frequency: (3)5 ~100Hz
