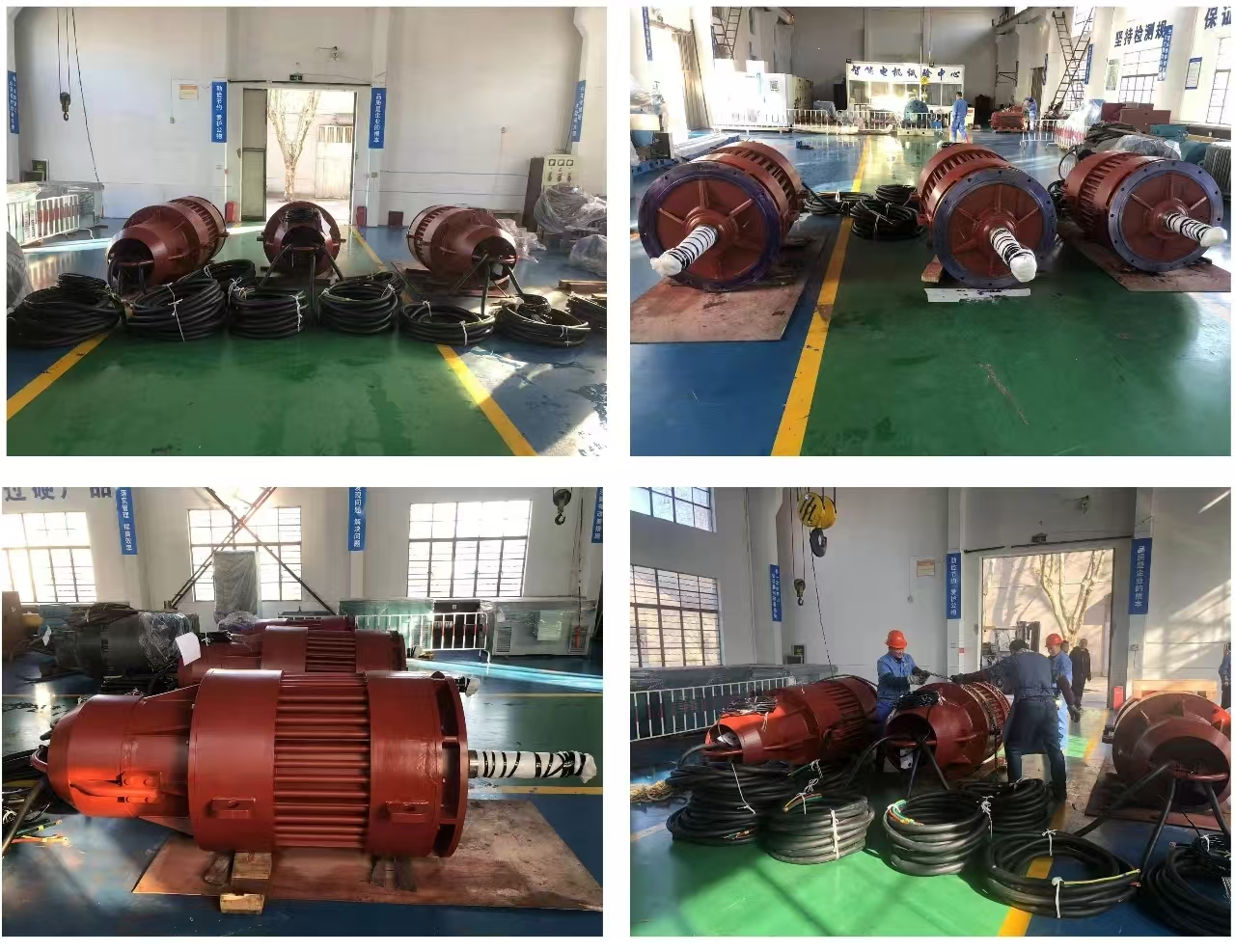

As a special motor capable of prolonged underwater operation, submersible motors require design and performance adaptations to complex aquatic environments, resulting in several distinct characteristics:
1. Sealing
Performance
Core requirement: Prevent water ingress to avoid short circuits and insulation
failure.
•Static sealing: Waterproof O-rings combined with precision-machined flanges and uniformly tightened bolts prevent leakage at fixed joints.
•Dynamic sealing: Combines mechanical seals with skeleton oil seals at shaft extensions to maintain leak-free rotation.
•IP68 rating (minimum) certified by high-pressure watertight testing.
2. Cooling System
Replaces air cooling with direct water heat exchange:
Motor housing transfers heat to surrounding water (water's thermal conductivity ≈25× air).
Corrosion-resistant materials (e.g., 316 stainless steel for seawater) with flow channels to prevent clogging in polluted water.
3. Pressure
Resistance
Thick-walled casings (cast iron, steel, or stainless steel) withstand
hydrostatic pressure at depth. Oil-filled designs balance internal/external
pressure.
4. Insulation Enhancement
•Class F/H insulation with waterproof varnish and vacuum-impregnated insulation paper.
•Optimized winding structures for high-voltage models to suppress corona discharge.
5. Corrosion
Protection
•Material selection based on water quality:
•Seawater: 316 stainless steel (anti-chloride corrosion).
•Sewage: Ductile iron housings + ceramic/SiC bearings.
•Chemical wastewater: PTFE non-metallic seals.
6. Reliability Design
•Waterproof bearings with water-resistant grease.
•Built-in thermal protectors/sensors for overload cutoff.
•Inlet filters to block debris (e.g., sand, aquatic plants).
Application-Specific Adaptations
•Deep-well motors: Slim-profile design for narrow casings; axial load tolerance.
•Sewage pump motors: Anti-clogging; oil/corrosion-resistant insulation.
•Subsea oil motors: Explosion-proof; seawater/high-temperature resistance.
Submersible motors achieve long-term reliability in harsh environments through integrated pressure, corrosion, and insulation protections, widely used in water supply, wastewater treatment, and offshore engineering.
