Ratio: 3:1 to 512:1
| Gearing Arrangement | Planetary | Model |
NMRV 25-130 |
| Output Torque | 4.5~4000N.m | Ratio | Custom |
| Input Speed | 1500-3000rpm | Output Shaft Type | Custom |
| Output Speed | 1.5~1000rpm | Max Input HP | Custom |
| Mounting | Custom | Toothed Portion Shape | Involute spur gear |
| OEM & Customised | Available | Packing | Carton and Wooden Case |

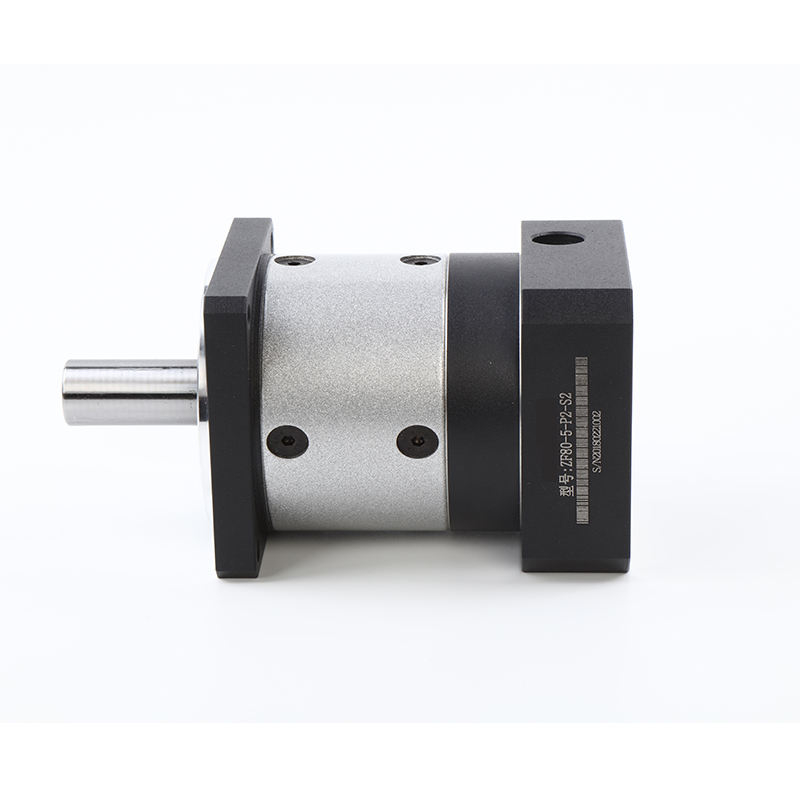

Spur Planetary Reducer Torque Right Angle Palnetary Gearbox
gear ratio ranges from 3:1 to 512:1
To meet the different precision and usage occasions requirements, we supply two kinds of 2 speed planetary gearbox:
spur planetary gear reducer, bevel helical planetary reducer gearbox.
They are widely used for stepper motor,servo motor and other high precision industrial occasions, which need to reduce the speed or enlarge the torqure, Such as robotics.
About the frame size,our small planetary gearbox external diameter can be 40 mm, the biggest one can be 175 mm.
|
Series
|
P2E, P2F, WP2E, WP2F
|
||
|
Gearbox outline size (mm)
|
40, 60, 80, 90, 120, 160
|
||
|
Stage
|
Single stage
|
Two stage
|
Three stage
|
|
Ratio
|
3:1, 4:1, 5:1, 8:1, 10:1
|
9:1, 12:1, 15:1, 16:1, 20:1, 25:1, 32:1, 40:1, 64:1
|
60:1, 80:1, 100:1, 120:1, 160:1, 200:1, 256:1, 320:1, 512:1,
|
|
Rated input speed (rpm)
|
3500
|
3500
|
3500
|
|
Max input speed (rpm)
|
6000
|
6000
|
6000
|
|
Efficiency (%)
|
96
|
94
|
90
|
|
Lowest backlash (arcmin)
|
3
|
6
|
8
|
|
Niose (dB)
|
≤62
|
≤62
|
≤62
|
|
Life (h)
|
30000
|
||
|
Lubrication
|
Lifetime lubrication
|
||
|
Level of protection
|
IP65
|
||
Applicable Industries:
Manufacturing Plant, Machinery Repair Shops....
What information should I tell you to confirm the worm gearbox?
A:Model, size
B:Ratio, output torque
C:Power, flange type
D:Shaft direction
E:Housing color
F:Order quantity
