Power:10~800HP Frame: 215TP-5806P 160-355
| Series | VHS VHSVF | Voltages |
380V 400V 230/460V |
| Frame size | 160 - 355 215TP-580TP | Frame | High grade Cast Iron, Steel Plate |
| Power output | 10 -800HP | IP class | IP55 |
| Mounting | Vertical | Temperature class | 155 (F) according to 130 (B) or 180 (H) according to 155 (F) |
| Efficiency | IE3 | Starting method | Direct On-Line, VFD |
| Poles | 2, 4, 6 | Certificates | CE UL |
Features:
1. Service Factor: 1.15 Service Factor- Continous on Sine Wave Power. 1.0 Service Factor on PWM
2. Protection Enclosure: Totally Enclosed Fan Cooled (TEFC) IP55
3.Power Conditions: Voltage:+10%, Frequency:+5%, and 10% Max, of Combined Voltage and Frequency, but Frequency
Variation Does Not Exceed 5%
4. Connection: Direct On-Line;Part Wind Start; VFD; Wye/Delta on Low Voltage
5.Diection of Rotation: CCW (View from Top Side); Bi-Directional without NRR
6.Operating Conditions: For Direct Coupling.
7.Optional: Space Heaters, Thermal Protected, Resistance Temperature Detector(RTD)
8. External Fan: Aluminum.
9. VPI process applied for best electrical performance.
10. Shaft: 1045 Carbon Hollow Steel Shaft.
11. NRR: Ball Type "Non-Sparking"
12. Inverter Rated (10:1VT)

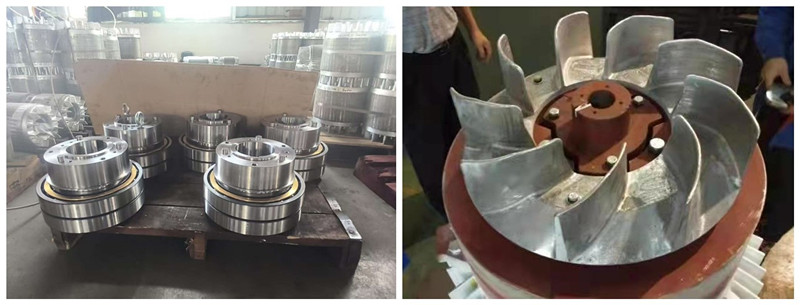

Oversized trust bearings to withstand demanding trust loads
AC vertical hollow shaft motors trust bearings are oversized for long life. Trouble Free bearing operation is assured visible oil levels,low friction bronze bearing retainer, precision cast bearing housing, deep oil bath and precision balanced bearings.
Bearing options for extra high trust applications.
Where higher trust requirements exists, AC offers options to match the trust requirements for long term operation. We took provisions for stackng bearings by having a "spacer bearing" need only be removed and a matched bearing installed in in its place to make an easy modification. For even a higher trust demand, spherical roller bearings with copper cooling tubes are furnished.
