Home > Products > Electric Motors > AC Low Voltage Motors
  • NEMA Stainless Steel IP69K Motor NEMA Stainless Steel IP69K Motor

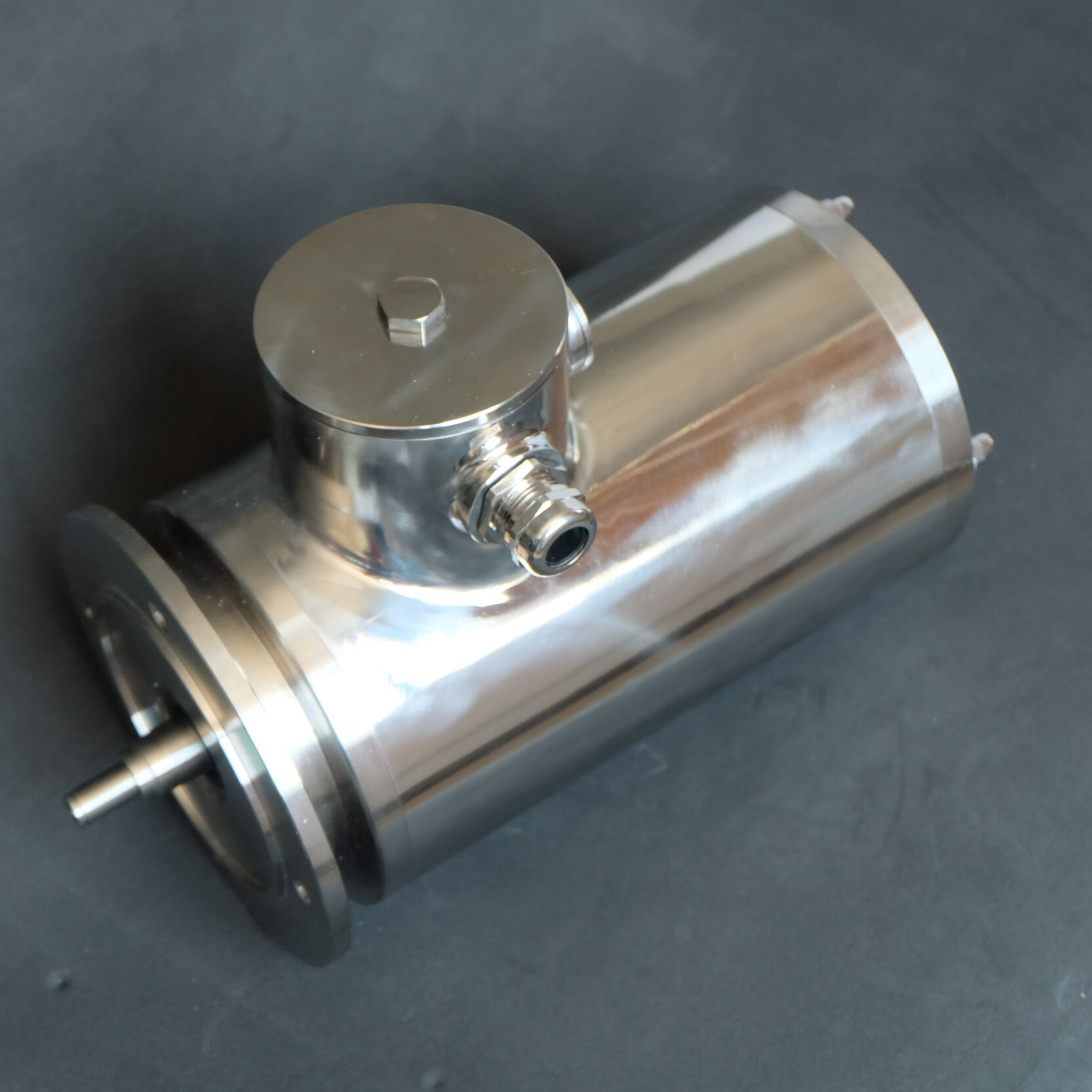

NEMA Stainless Steel IP69K Motor

NEMA Stainless Steel IP69K Motor

NEMA Premium IP69K Power: 1/4- 30HP TEFC TENV

Series NS (IP69K) Stainless Steel Premium Efficiency Washdown Duty Motors Voltages

208V 230/460V 460V

Frame size 56C - 286TC Frame  Stainless Steel
Power output 1/4 - 30HP IP class IP55, IP56, IP66, IP69K
Mounting C-face, D-face, with foot, without foot Temperature class 155 (F) according to 130 (B) or 180 (H) according to 155 (F)
Efficiency  NEMA Premium Cooling method TEFC  TENV
Poles 2, 4, 6 Certificates USA

Download
Inquiry

Categories

  • Electric Motors
  • AC Low Voltage Motors
  • AC High Voltage Motors
  • Vertical Hollow Shaft Motors
  • DC Motors
  • Synchronous Motors
  • Gearboxes
  • Helical Gearbox
  • Turbine Reducer
  • Planetary Gearbox
  • Pumps
  • Dynamic Pumps
  • Positive Displacement Pumps
  • Specialty Pumps
  • Cabinet
  • Fire control cabinet
  • Communication cables
  • nong
  • OVERVIEW
  • SERVICE

Features:


1. Inverter Duty Rated: 3:1CT & 5:1VT

2. Service Factor: 1.15

3. Design : "B" or "C"

4. All external surfaces 304/316 stainless steel: motor frame, endplates, conduit box, shaft and base.

5. Four condensate drains in each endplate.

6. Lip seals.

7. Especially effective in highly corrosive environments where paint or other finishes  do not hold up.







3PH TEFC 60Hz NEMA AC C-Face Footed and Round Body Washdown Motors


Applications:


Premium Efficient TC Frame Stainless Steel NEMA motors are designed to meet the sever-duty sanitation requirements for food-grade and high pressure washdown motor applications.

Available in TC-Frame sizes,  interior anti-corrosion resistant coated, and are 100% TEFC 300 series stainless steel constructed for pharmaceutical, food  & beverage processing and packaging industries.
